MAX RHINO 5500


Get Max RHINO 5500 Specifications and Installation Manual pdfs by clicking the download buttons.
Or, read about features and specifications below without leaving this page.

MAX RHINO 5500

HIGH TRAFFIC HEAVY DUTY INDUSTRIAL 24 V BRUSHLESS DC SLIDE GATE OPERATOR. MAXIMUM GATE WEIGHT 5500 LBS.

Fail secure; cannot be back-driven upon complete power loss.

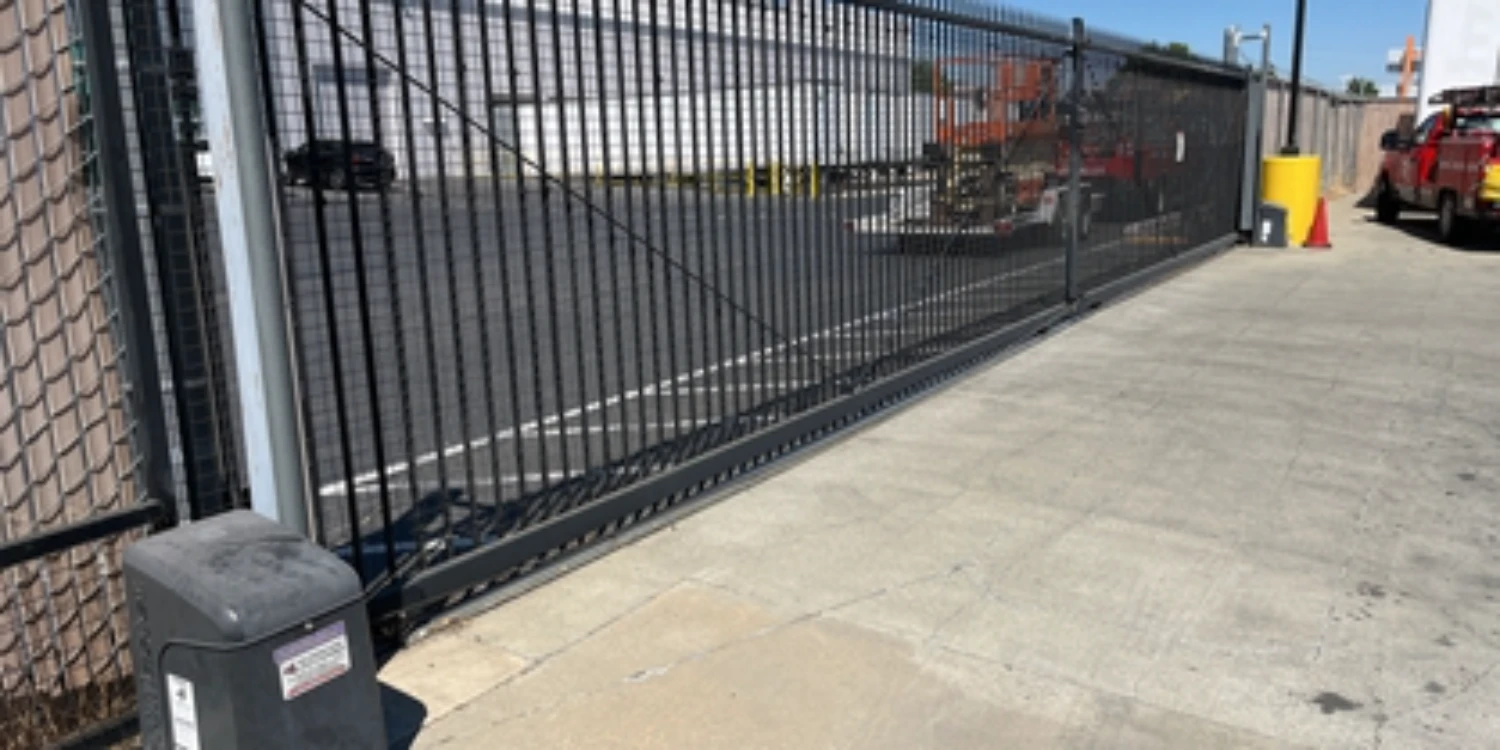

Max Rhino 5500 brushless DC sliding gate operator is a solar ready, size 50 chain powerhouse that upon complete power failure can not be back driven, fail secure. If security is an issue, our patented chain drop can trigger an alarm wirelessly, silently. Our lockable steel covers can limit unwanted program changes by the wrong personnel. Capable of continuous duty cycles to meet the high demands of industry. Full battery back up and emergency jog function allows entry in case of UL failure. These and many more features make the Max Rhino 5500 the perfect slide gate operator for your most demanding commercial projects. Class lll and lV only.

FEATURES SPECIFICATIONS

Built-in battery backup
2 AGM (7Amp/Hr) 12V, Yuasa batteries, 40 cycles
Operator does not rely on the batteries when AC power is present
On board diagnostic logs 8000 past events, large LCD display
Shows current and past errors and info
Dynamic braking system, on incline applications.
Audible alarm and relay out trigger when unauthorized entry (push back) is attempted

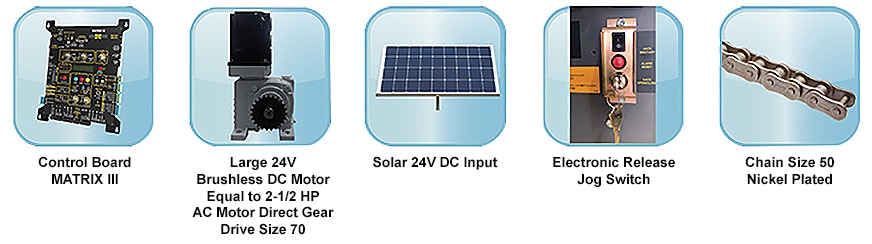

Brushless DC Motor equivalent to 2 1/2 HP AC motor
Gate capacity 5500 lbs
3-year warranty on gate operator
Battery 1-year warranty
Motor overcurrent safety shutoff for additional protection

Direct drive gearbox in oil bath allows less moving parts (making the system more reliable) as well as quieter (virtually silent)
Lightning Protection Advanced lightning strike protection up to 20,000 Volts/10,000 amp
Continuous duty cycles at extreme temperature range -4˚F to 165˚F (-20o˚C to +74˚C) operational temperature range including battery performance without needing a heater
Safety monitor device types: Normally closed or 10K types (most safety inputs in the industry)
UL 325/991 compliant Class III, and IV. CSA approved
Rhino Slide Gate Operator dimensions (14.5” W x 19 .625” D x 29” H) weight 225 lbs

The chain tray can be used on this gate operator

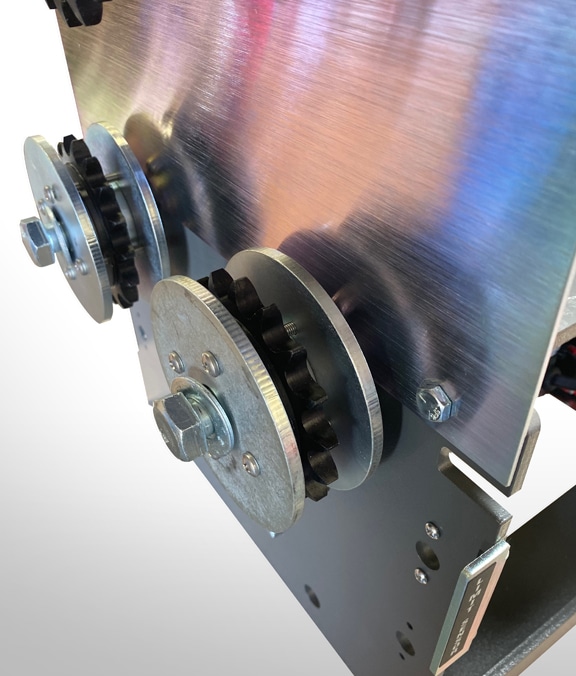

Chain #50 nickel plated • 30 ft included
Independent open and closing speed control, adjustable from 8” per second to 12” per second
The jog key feature on the Rhino is used for emergency opening or closing. Think of the jog circuit as a single trace from key to power source to motor. The jog input can also be connected a latched relay on your keypad for emergency opening of the sliding gate due to UL2018 open device failure.
Programmable virtual limit standard
Optional magnetic limit sensors available
Gate status outputs for gate monitoring/Gate Open or Close
Power options Input 115V/230V AC single phase
Solar panel compatible (24V DC)
