MAX F18 PRO

Get Max F18 PRO Specifications and Installation Manual pdfs by clicking the download buttons.
Or, use the accordians and tabs below to read about features and specifications without leaving this page.

MAX F18 PRO

FAST HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

Fast slider for today’s market.

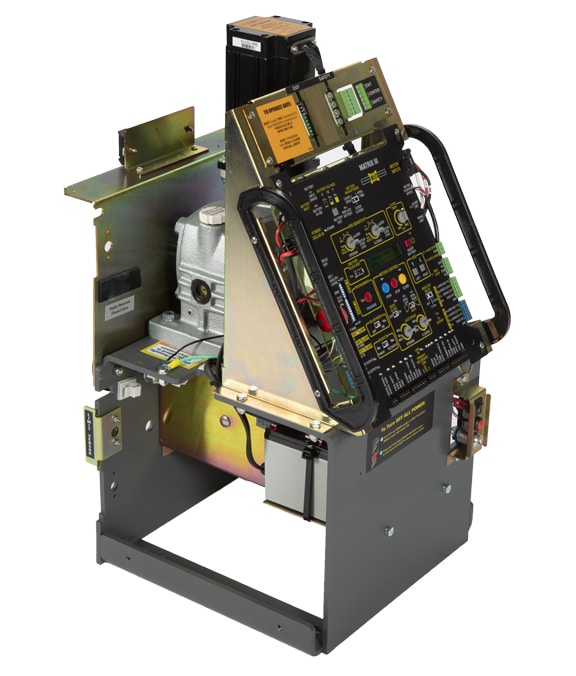

The Max F18 PRO sliding gate operator is a robotic DSP controlled machine that is strictly for UL 3 and 4 commercial/industrial applications such as oil refineries, factories, institutions, mini-storage warehouses, and airports, etc. It is capable of moving 1600 lb. gates to a maximum gate length of 50 ft. With 18″ per second direct drive (no belts or pulleys), the F18 PRO is 50% faster than common gate operators. The F18 PRO offers reliable state machine design electronics, 24V brushless DC motor, robust features and ease of installation. The Max F18 PRO’s attractive cover and access doors are made of a quarter inch UV protected, high impact polyurethane material that offer years of non-fading and structural stability. It comes standard with a lockable cover for easy access that allows for quick servicing. Max F18 PRO sliding gate operator is also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most popular gate operators in the industry.

Max F18 PRO Mechanical Specifications

Specifications listed in blue are unique to Max F18 PRO

Max F18 PRO slide gate operator dimensions (14.5” W x 19” D x 25.5” H) 7.5” chain height
Heavy duty direct drive gear box, size 60, 30:1 ratio
Max F18 PRO capacity 1600 lbs/60ft long gate speed 12″ for UL class III and IV
Independent opening and closing speed control for primary and secondary
Direct drive (no internal chains, belts, or pulleys)
Corrosion protection gold zinc coating and electrostatic powder coating applied
Continuous cycle at extreme temperature ranges—overheating not possible
Intelligent ramp-up and ramp-down for smooth operation
Selectable short or long ramp-down
Shipping weight of Max Slide Gate Operator: Max F18 PRO (160 lbs)
Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of a total power loss)

Max F18 PRO Electrical Specifications

Specifications listed in blue are unique to Max F18 PRO

Electronic Release: Jog switch at front cover sliding window

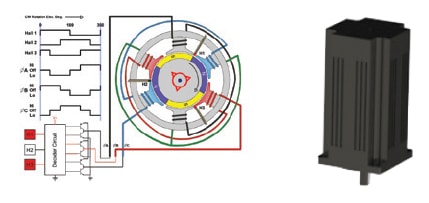

Brushless DC motor equivalent to 1 1/4 HP AC motor
Programmable gate speed controls, 16 selectable speeds
Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
Modular system design for ease of service
Switchable 115/230 voltage selection
Adaptive DSP control for advanced brushless DC motion control

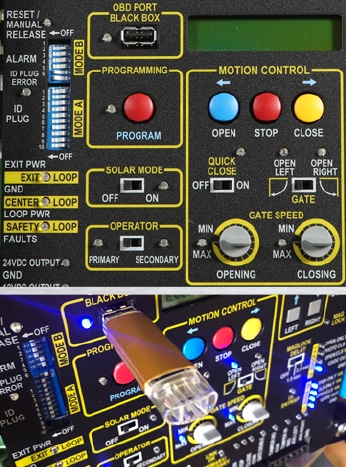

Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
LCD display that report past and recent errors

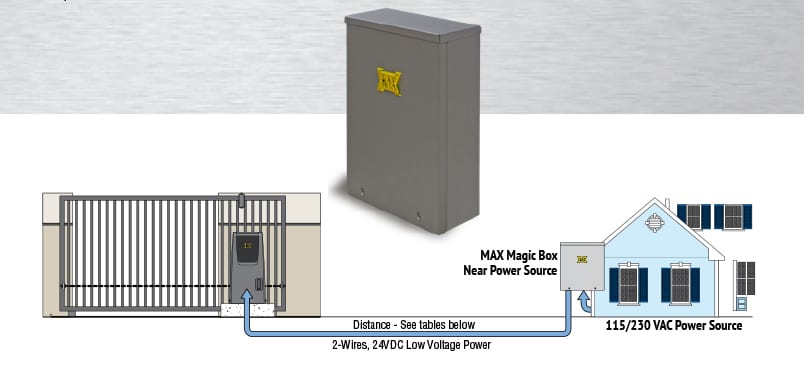

Low voltage wiring capabilities for remote power up 500 ft (no battery needed)
‘Solar Ready’ battery module with built-in advanced solar regulator
Intelligent power management system with energy saver mode
Built-in 12vdc and 24vdc outputs
Gold contact input connections and automobile grade connectors
Selectable open timer 0 to 60 seconds with ‘timer off’ option
-4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater
Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 channels) including loop detector input connections
Motor overcurrent safety shut off for additional protection

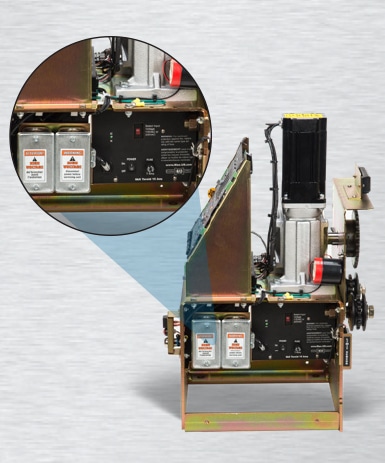

This operator includes a battery backup module providing on average 200 cycles in case of power failure
Three modes of selectable battery backup functions

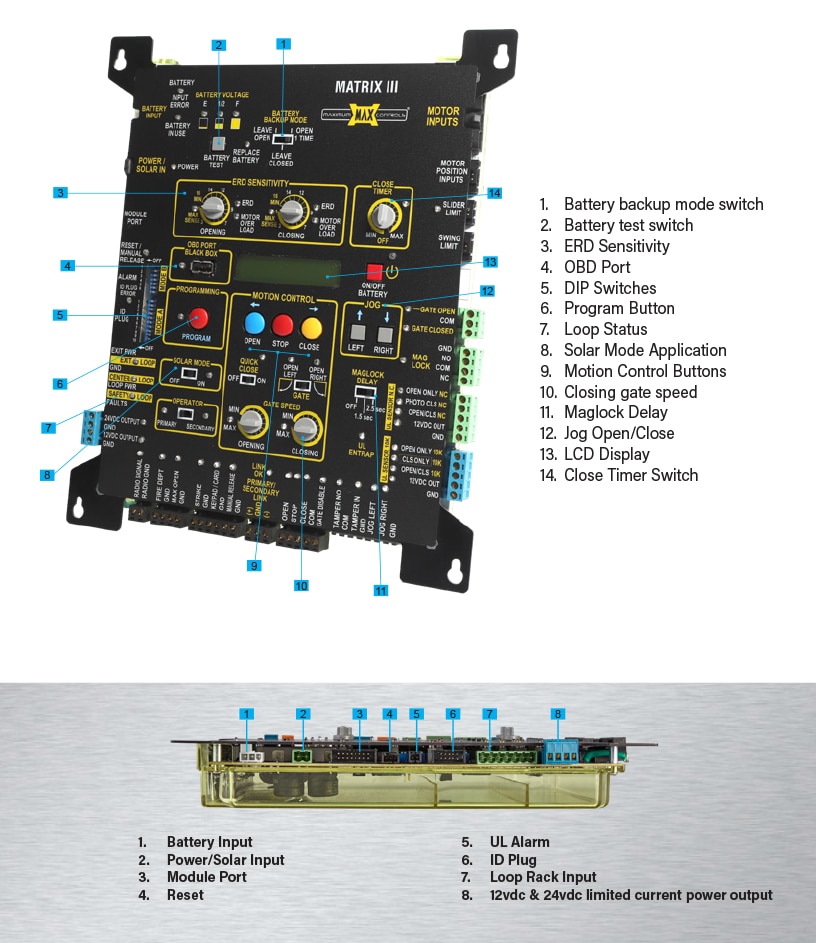

State machine design electronics with ultra-fast microprocessor
On-board three button station

Max F18 PRO Security Specifications

Specifications listed in blue are unique to Max F18 PRO

High traffic intuitive loop management system for better security
Advanced security features with built-in audible and remote alarms
Magnetic lock control relay outputs with selectable delay times
Tamper-alert relay output triggers “on” if gate is forced open
Audible alarm if gate is tampered with or ERD is triggered for higher security
Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles

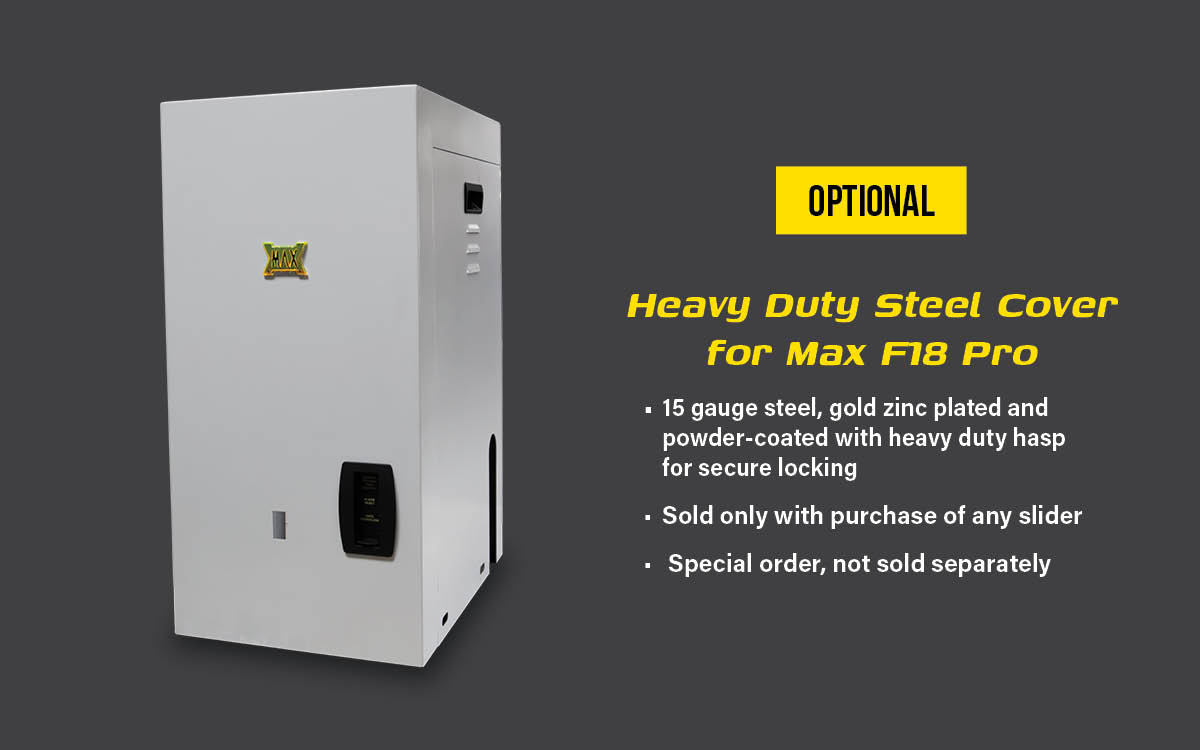

Lockable cover with key lock release to prevent intruders and vandalism
Built-in transaction buffer for high security 8000 events as well as error messaging file
Gate status outputs for gate monitoring
Advanced anti-tailgate feature provides higher security
Optional Chain Drop Sensor detects unauthorized chain drops when using magnets option
Fire Department Compliance allows gate to auto-open upon loss of AC power or battery depletion

Max F18 PRO Safety Specifications

Specifications listed in blue are unique to Max F18 PRO

Adaptive obstruction sensor for gate safety system. 16 selectable sensitivity settings
UL 325/991 compliant Class III, and IV. CSA approved
Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions
Built-in advanced entrapment protection and alarm output
Built-in gate-in-motion alarm for industrial applications
Optional normally close or 10K safety inputs (most safety inputs in the industry)
