INSL24UL
INSL24UL
24VDC Continuous Duty Industrial Slide Gate Operator
- Continuous Duty BLDC Industrial Operator
- Rated for heavy gates up to 2200 lbs. and 70 ft.
- Battery Backup with Variable Speed
- Easy retrofit in place of SL585 or SL595. There is no new concrete to pour and no new wiring required.
- Soft Start and Soft Stop Technology
Features
Gate Safety and Security
Gate Safety Sensors
Protect people entering or leaving your garage with safety sensors that stop the gate from closing on obstructions.
Manual Disconnect
Allow unlocked gates to be opened manually with manual disconnect feature.
Safety Reversing
When detecting an obstruction the gate reverses with the inherent reversing sensor and the included monitored safety accessories.
Quick Close Feature
Prevent unauthorized access with quick close feature that stops vehicles from tailgating.
UL Listed
Tested to the most stringent UL 325 industry guidelines. External entrapment protection devices need to be added to meet UL 325 standards. Your Installer will recommend suitable entrapment protection devices for your installation, such as photoelectric or edge sensors.
Sync
Synchronizes gate operation and eliminates costly trenching; set speed independently if needed.
Gate Power
Gate Battery Backup
Get in and out when the power’s out with battery backup.
Smooth Operation
Get years of reliable use by reducing wear with smooth start/stop operation.
Business Connectivity
Securely Monitor and Control
Securely monitor and control gates and doors with myQ® (requires additional Internet Gateway unit).
Easy Access Control

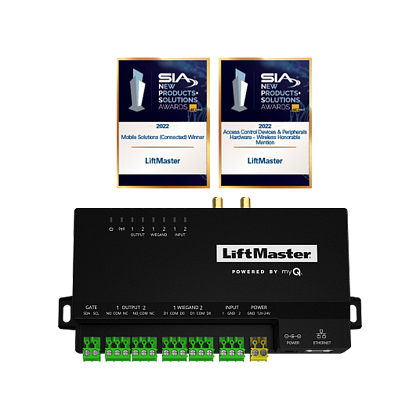

Integrates easily with LiftMaster Access Control Technology such as CAPXLV Connected Access Portal or the CAP2D Door Controller.
Gate Real-Time Alerts
Know when a gate opens with real-time alerts.
Close with a Tap
Close any gate with a tap, from anywhere. Using the myQ® smartphone app (requires additional Internet Gateway unit).
Specifications
Voltage
120/240 VAC Single Phase (3 Phase capable)
AC / DC
Brushless DC
Security / Lock
Lockable Cabinet
System Capacity
Up to 2,200 lbs. and 70 ft.
myQ Compatibility
Yes
Outdoor Rating
NEMA 3R
Battery Backup
Yes
Soft Start / Stop
Yes
Product Weight
129 lbs.
What's Included
Installation & Support
- Gate Operator Radio Technology Compatibility – English
- LiftMaster Gate Operator Solar Cycle Reference Guide – English
- LiftMaster Gate Operator Solar Cycle Reference Guide – French
- LiftMaster Gate Operator Solar Cycle Reference Guide – Spanish
- LiftMaster Models IHSL24UL / INSL24UL Product Guide – English
- LiftMaster Models IHSL24UL / INSL24UL Product Guide – French
- LiftMaster Models IHSL24UL / INSL24UL Product Guide – Spanish
- LiftMaster Models IHSL24UL, INSL24UL Retrofit Product Guide – English
- https://cgi.widen.net/content/tsy78jc8qn/original/IHSL24UL_INSL24UL_Retrofit_Product_Guide_FR.pdf?u=mcyivk&download=true
- LiftMaster Models IHSL24UL, INSL24UL Retrofit Product Guide – Spanish
- UL 325 Listed Gate Operator Feature Chart – English
- IHSL24UL / INSL24UL Product Drawing – English
- IHSL24UL / INSL24UL Wiring Diagram – English
- INSL24UL Data Sheet – English
- INSL24UL Data Sheet – French
- INSL24UL Data Sheet – Spanish
- LiftMaster INSL24UL Specification – English
- LiftMaster INSL24UL Specification – French
- LiftMaster INSL24UL Specification – Spanish
