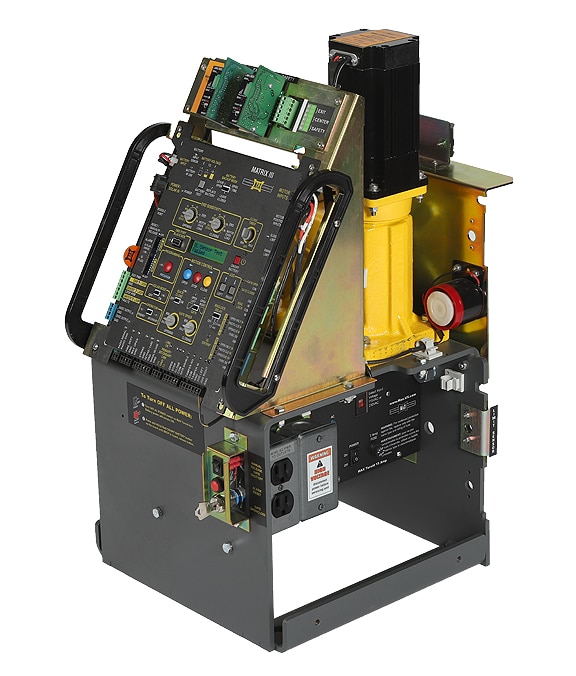

MAX 1700 FS PRO

Fail Safe High Traffic Commercial Brushless DC Sliding Gate Operator

Maintains manual gate operation when AC power is lost or the battery runs out.

The MAX 1700 FS PRO delivers fail-safe, back-drivable manual operation in the event of AC power loss or battery depletion, keeping your gate accessible and your property protected even during outages. This DSP-controlled sliding gate operator is built for high-traffic gated communities, commercial and industrial facilities, and public storage properties. It handles gates up to 1,700 lbs and 40 ft in length with precision and reliability.

Features

Local keyed manual disconnect allows the gate to be pushed back manually when needed.
Remote keyed manual disconnect lets authorized personnel push the gate back from outside the property using a keypad or dry contact command.
Dynamic braking system actively resists unauthorized pushback when the gate is in the closed position.
Audible alarm and relay output trigger immediately when an unauthorized entry attempt is detected.
Includes 25 ft #40 nickel-plated chain and brackets.
Programmable virtual limit for flexible gate movement configuration.
Optional magnetic limit sensors available for added precision.
Patent No. US 9,406,207 B2

Download the MAX 1700 FS PRO specifications and installation manual using the buttons below, or browse the features and specs directly on this page.

MAX 1700 FS PRO Mechanical Specifications

Specifications marked with an asterisk (*) are unique to the MAX 1700 FS PRO.

Dimensions: 14.5″ W x 19″ D x 25.5″ H, 7.5″ chain height
Heavy-duty direct drive gearbox, Size 60, 20:1 gear ratio
Gate capacity: 1,700 lbs / 40 ft maximum gate length at 12″ per second for UL Class I and II; adjustable dip switch configuration supports UL Class III and IV at speeds up to 19″ per second
Independent opening and closing speed control for primary and secondary operation
Direct gear drive with no internal chains, belts, or pulleys
Gold zinc coating and electrostatic powder coating applied for corrosion protection
Engineered for continuous cycle operation across extreme temperature ranges without overheating
Intelligent ramp-up and ramp-down for smooth, controlled gate movement
Selectable short or long ramp-down configuration
Shipping weight: 156 lbs
Programmable virtual open and close limits that auto-set in the event of a total power loss

MAX 1700 FS PRO Electrical Specifications

Specifications marked with an asterisk (*) are unique to the MAX 1700 FS PRO.

Mechanical release via local switch, keypad, or any dry contact relay disengages the dynamic braking system, allowing the gate to be pushed back manually in an emergency
Brushless DC motor with output equivalent to a 1¼ HP AC motor
Programmable gate speed controls with 16 selectable speed settings
Automatic gate position reset requires optional magnets and sensors or positive stops on both gate directions when using virtual limits
Modular system design for straightforward field service and maintenance
Switchable 115/230 voltage selection for flexible installation
Adaptive DSP control for advanced brushless DC motion management
Real-time performance analyzer and event log via OBD port and Black Box, storing up to 8,000 events including full error and failure history
LCD display reporting current and historical error codes
Low voltage wiring supports remote power-up up to 500 ft without a battery
Solar Ready battery module with built-in advanced solar regulator
Intelligent power management system with energy saver mode
Built-in 12VDC and 24VDC outputs
Gold contact input connections and automotive-grade connectors for reliable performance
Selectable open timer from 0 to 60 seconds with a timer-off option
Operational temperature range of -4°F to 165°F (-20°C to +74°C), including full battery performance without a heater

MAX 1700 FS PRO Security Specifications

Specifications marked with an asterisk (*) are unique to the MAX 1700 FS PRO.

High-traffic intuitive loop management system for enhanced access security
Advanced security features with built-in audible and remote alarms
Magnetic lock control relay outputs with selectable delay times
Tamper-alert relay output activates when the gate is forced open
Audible alarm triggers when the gate is tampered with or an ERD event occurs
Programmable inputs support partial open cycles for high-traffic use while maintaining full open cycles for emergency vehicles
Lockable cover with key lock release to prevent unauthorized access and vandalism
Built-in transaction buffer stores up to 8,000 events with error messaging for high-security monitoring
Gate status outputs for real-time gate monitoring
Advanced anti-tailgate feature for improved access control
Optional Chain Drop Sensor detects unauthorized chain drops when the magnets option is in use
Fire Department Compliance allows the gate to auto-open upon loss of AC power or battery depletion

MAX 1700 FS PRO Safety Specifications

Specifications marked with an asterisk (*) are unique to the MAX 1700 FS PRO.

Adaptive obstruction sensor with 16 selectable sensitivity settings for precise, reliable gate safety performance
UL 325/991 compliant for Class I, II, III, and IV applications; CSA approved
Dynamic magnetic brake system stops the gate immediately upon contact with an obstruction, minimizing the risk of damage or injury
Built-in advanced entrapment protection with dedicated alarm output
Built-in gate-in-motion alarm designed for industrial applications
Optional normally closed or 10K safety inputs, offering more safety input options than most operators in the industry

Jog Switch
Magnetic Limit Sensing Technology
Components
Gearbox
Brushless DC Motor

When Battery Backup is configured for one-time open or leave open, the operator’s braking system is released automatically, allowing the gate to be pushed back manually in the event of a catastrophic failure.
The Electronic Gate Open/Close function disengages the braking system for 15 minutes using a local or remote key switch wired into the jog inputs on the motor controller.
The Gate Release Switch provides the same 15-minute disengagement.
After 15 minutes, the operator returns to normal operation automatically.

Optional Feature

In response to customer demand, all Maximum Controls sliding gate operators now ship with programmable virtual limits as the standard configuration. The magnetic sensor harness and chain magnets are available as an optional upgrade, factory installed or retrofitted in the field.

Here is how the magnetic limit sensor system works:

Hall Effect sensors identify precise rotational positions throughout gate travel
DSP memory logs 30 samples per inch during every inch of gate movement and stores limit positions in non-volatile RAM
Chain magnets establish open and closed positions during a learn mode, where the gate travels at half speed while limits are recorded
Limits are re-learned automatically on the first cycle following a complete AC and battery power loss

The MAX 1700 FS PRO is engineered with precision components designed for high-traffic commercial and industrial applications. Every element of the operator is built for reliability, from the heavy-duty cast iron gearbox to the advanced brushless DC motor and intelligent power management system.

Each component works together to deliver smooth, consistent gate operation while minimizing maintenance requirements and maximizing operational lifespan across extreme temperature ranges and continuous duty cycles.

The MAX 1700 FS PRO uses a Size 60, 20:1 high-efficiency, heavy-duty cast iron gearbox engineered to produce maximum torque while maintaining a low amperage draw and near-silent operation.

The gearbox housing is rugged cast iron with bronze gears and double-sealed, heat-treated solid shafts, developed by a team with more than 40 years of experience in the gearbox industry. High-speed ball bearings and a synthetic oil bath keep the operator running reliably across extreme temperature ranges, with no belts, chains, or pulleys that could wear down over time and create maintenance issues.

The MAX 1700 FS PRO brushless DC motor uses Hall Effect magnetic sensing to track precise rotational positions throughout gate movement, logging over 30 samples per inch of gate travel. This positional feedback drives intelligent ramp-up and ramp-down of gate speed, reducing mechanical stress on every component in the system.

Hall Effect sensors continuously monitor gate position, synchronizing bi-parting gates to open and close at matching speeds. This technology works alongside the dynamic magnetic brake system to stop the gate instantly on contact with an obstacle, protecting people and equipment from harm.

The brushless DC motor is rated for operation up to 165°F (74°C), exceeding the thermal tolerance of most competing motor technologies currently available. Torque output is equivalent to a 1¼ HP AC motor, with an operational life of approximately 35,000 hours or around 6 million cycles, meaning the motor is built to last for decades under normal use. Maximum Controls backs every brushless DC motor with a 5-year warranty.

Motor Control Technology
Advantages of Brushless DC Motor
Power Supply
Magic Box

Maximum Controls’ brushless DC motor control delivers a level of movement precision that traditional brushed motors simply cannot match. One of the most significant advantages is the complete elimination of overcoasting, which is critical for bi-parting slide gates sharing the same track and for installations with catch posts or fixed columns that cannot be relocated.

The system’s ability to stop instantly is equally important in real-world applications. When a safety edge is struck, the gate halts immediately to protect people, vehicles, and equipment from harm. This combination of precision movement and instant response puts the MAX 1700 FS PRO motor control technology in a category of its own.

Brushless DC motor technology offers significant advantages over traditional brushed motors for high-traffic commercial gate applications. The elimination of physical brushes means no brush wear, no commutator maintenance, and dramatically longer service life.

Additional advantages include higher torque-to-weight ratio, improved thermal efficiency for operation up to 165°F, precise digital position control via Hall Effect sensors, instant stopping capability without overcoasting, and quieter operation across all speed ranges. These benefits translate directly into lower maintenance costs, higher reliability, and safer gate operation for commercial and industrial properties.

The MAX 1700 FS PRO power supply uses a 15-amp toroid transformer and power management board, engineered to handle extreme load and temperature conditions without being overstressed. Input voltage is selectable between 115V and 230V via a built-in selection switch.

During normal gate operation, the system draws from AC power only, keeping the battery in reserve and preserving its service life for when it’s actually needed.

Input AC Power: Switchable 115VAC / 6A, Single Phase or 230VAC / 2A, Single Phase

The MAX 1700 FS PRO Magic Box feature can save thousands of dollars in trenching costs and permit fees. When unexpected obstacles like rock formations or buried utility lines make direct trenching impractical, the Magic Box provides an alternative power management solution that eliminates the need for that run entirely.

Unlike battery-dependent systems, the Magic Box does not rely on battery power as a booster. This means the gate remains fully operational regardless of battery condition, even if the batteries are malfunctioning or removed entirely. This technology is exclusive to Maximum Controls and is not available on any other gate operator platform.

Black Box, USB Diagnostics
Advanced Security Features
Control Features and Connections
Lightning Protection

The MAX 1700 FS PRO is built around two core goals: maximum security and ease of maintenance. High gate speed and advanced loop management are standard, but what truly sets this operator apart is its built-in diagnostic capability.

The system uses non-volatile memory to continuously log performance data and input/output events in real time. When a complex or intermittent problem occurs, a technician simply plugs a USB thumb drive into the onboard USB port and downloads the full event history instantly. The data exports as a .TXT file that can be reviewed on-site or emailed directly to the factory for remote diagnosis.

The event log captures the most recent 8,000 events across all system modules, giving technicians a complete, timestamped record of everything the operator has done, making problems that were once difficult to isolate straightforward to identify and resolve.

Tamper Alert and Gate Disable

The MAX 1700 FS PRO includes Maximum Controls’ patented Tamper Alert system, which activates a relay output the moment an unauthorized entry attempt is detected, whether through a chain drop or forced gate movement. If the chain is cut and the magnet separates from the sensor, the Tamper Alert relay triggers immediately. That relay output can activate an audible alarm, connect to a burglar alarm system, or trigger any other device that accepts a relay input, including security cameras.

The Gate Disable feature is unique to Maximum Controls gate operators. It prevents unauthorized access by disabling normal open commands from devices like keypads or exit loops, stopping anyone from exploiting those inputs to force the gate open. When Gate Disable is activated, occupants have a three-minute window to exit the property before the system arms. Any unauthorized attempt to open the gate after that point will be denied, and the system will sound an alarm and trigger the Tamper Alert relay.

The MAX 1700 FS PRO offers comprehensive control features and connection options designed for seamless integration into commercial and industrial access control systems. The operator supports multiple input types including dry contact relays, keypad commands, loop detectors, and safety edge inputs.

All connection points use gold-contact terminals and automotive-grade connectors for long-term reliability in harsh environments. The built-in 12VDC and 24VDC outputs power peripheral devices directly, reducing the need for separate power supplies. Programmable inputs allow customized operation modes for emergency vehicles, high-traffic periods, and restricted access scenarios.

The MAX 1700 FS PRO delivers the most comprehensive lightning protection available in the commercial gate operator industry. The system protects all peripheral inputs, loop inputs, power inputs, relay outputs, and communication lines across more than 44 channels of protection, responding in one billionth of a second.

With particular attention paid to power supply protection, the MAX 1700 FS PRO is engineered to withstand any lightning strike occurring more than 50 feet away. No other gate operator on the market offers this level of protection.
