MAX 1500 PRO

Get Max 1500 PRO Specifications, Installation Manual pdfs and watch videos by clicking the download buttons. Or, use the accordians and tabs below to read about features and specifications without leaving this page.

MAX 1500 PRO

HIGH TRAFFIC COMMERCIAL BRUSHLESS DC SLIDING GATE OPERATOR

Security device that moves 1500 lb. gates. Competitively priced.

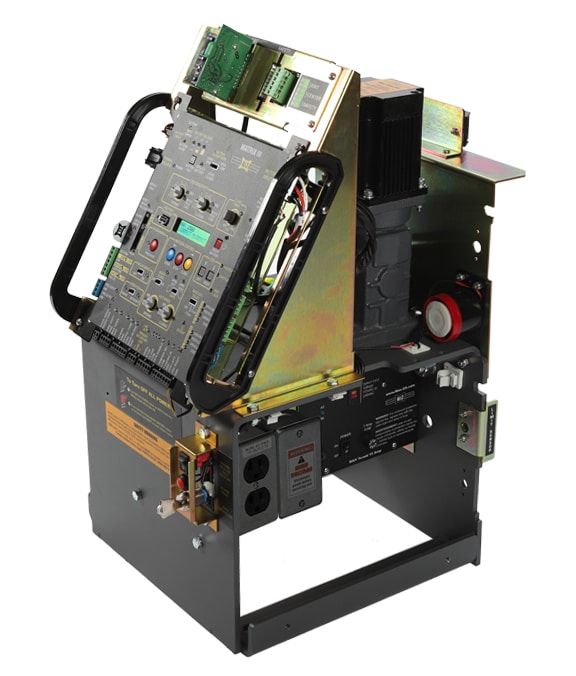

Max 1500 PRO sliding gate operators are robotic DSP controlled machines that are perfect for use in high traffic gated communities, commercial/industrial applications and public storage facilities. They are capable of moving 1500 lb. gates to a maximum gate length of 25 ft. While competitively priced, they offer the same reliable state machine design electronics, 24V brushless DC motor, robust features and ease of installation as Maximum Controls’ higher end models. The Max 1500 PRO’s attractive cover and access doors are made of a quarter inch UV protected, high impact polyurethane material that offer years of non-fading and structural stability. It comes standard with a lockable cover for easy access that allows for quick servicing. Max 1500 PRO sliding gate operators are also compatible with existing installations and in most cases can be directly bolted onto concrete pads used by the most popular gate operators in the industry.

Max 1500 PRO Mechanical Specifications

Specifications listed in blue are unique to Max 1500 PRO

Max 1500 PRO slide gate operator dimensions (14.5”W x 19” D x 25.5” H) 7.5” chain height
Heavy duty direct drive gear box size 60, 30:1 gear ratio
Max 1500 PRO capacity 1500lbs /25ft long gate speed 12″ per second for class I, II, III and IV
Independent opening and closing speed control for primary and secondary
Direct gear drive (no internal chains, belts, or pulleys)
Corrosion protection gold zinc coating and electrostatic powder coating applied
Continuous Cycle at extreme temperature range. No overheating possibility
Intelligent ramp-up and ramp-down gate speed control for smooth operation
Selectable short or long ramp-down
Shipping weight of Max Slide Gate Operator: Max 1500 PRO (152 lbs)
Programmable virtual OPEN & CLOSE limit (Limits auto-set in the event of total power loss)

Max 1500 PRO Electrical Specifications

Specifications listed in blue are unique to Max 1500 PRO

Electronic release: Jog switch at front cover sliding window
Brushless DC motor equivalent to 1/2 HP AC motor
Programmable gate speed controls, 16 selectable speeds
Automatic gate position reset requires optional magnets and sensors or when using virtual limits, positive stops on both gate directions
Modular system design for ease of service
Switchable 115/230 voltage selection
Adaptive DSP control for advanced brushless DC motion control
Real time performance analyzer and event log (OBD PORT and Black Box) 8000 events including the history of error failure
LCD display that reports past and recent errors
Low voltage wiring capabilities for remote power up 500 feet (no battery needed)
Solar ready battery module with built-in advanced solar regulator
Intelligent power management system with energy saver mode
Built in current limited 12vdc and 24vdc outputs
Gold contact input connections and automobile grade connectors
Selectable open timer 0 to 60 seconds with timer off option
-4F to 165F (-20C to +74C) operational temperature range including battery performance without needing a heater
Robust lightning protection up to 20KVolts and 10KAmps on all inputs and outputs (44 Channels) including loop detector input connections
Motor overcurrent safety shut off for additional protection
This operator includes a battery backup module providing on average 200 cycles in case of power failure
Three modes of selectable battery backup functions
State machine design electronics with ultra-fast microprocessor
On board three button station

Max 1500 PRO Security Specifications

Specifications listed in blue are unique to Max 1500 PRO

High traffic intuitive loop managements system for better security
Advanced security features with built-in audible and remote alarms
Magnetic lock control relay outputs with selectable delay times
Tamper alert relay outputs triggers “on” if gate is forced open
Audible alarm if gate is tampered with or ERD is triggered for higher security
Gate partial open recorder. Programmable inputs allow partial open cycles for high traffic gates while providing complete open cycles for emergency vehicles
Lockable cover with key lock release to prevent intruders and vandals
Built-in transaction buffer for high security 8000 events as well as error messaging file
Gate status outputs for gate monitoring
Advanced anti-tailgate features to provide higher security
Optional chain drop sensor detects unauthorized chain drops when using magnets option
Fire department compliance allows gate to auto-open upon loss of AC power or battery depletion

Max 1500 PRO Safety Specifications

Specifications listed in blue are unique to Max 1500 PRO

Adaptive obstruction sensor for much better gate safety system. 16 selectable sensitivity settings
UL 325/991 compliant Class I, II, III, and IV. CSA approved
Dynamic magnetic brake system stops the gate immediately to prevent damage to obstructions
Built-in advanced entrapment protection and alarm output
Built-in gate-in-motion alarm for industrial applications
Optional normally close or 10k safety inputs (most safety inputs in the industry)
