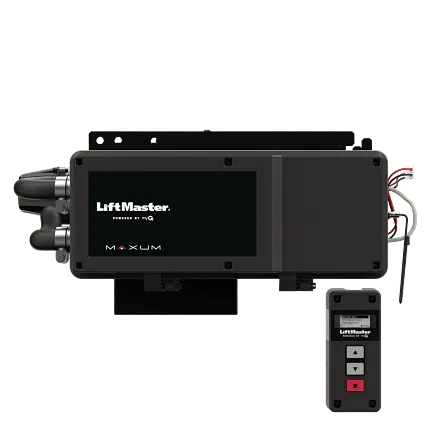

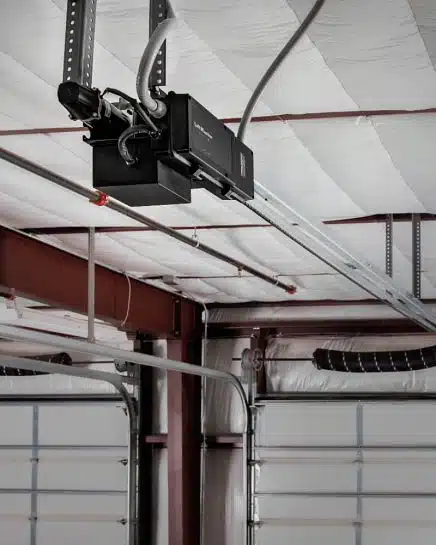

TDC

  • Motor and Gearbox purpose built to meet the high demands of commercial applications.
  • 3-button control with 4-line LCD display for setup and programming from the floor level.
  • Up to 33% faster than standard commercial door operators, allowing you to get shipments in and out quickly. Average speed is 12” per second.
  • Optional Battery Backup accessory helps keep your door running even when the power goes out—ensuring safe and continuous operation.
  • Diagnostics at floor level through myQ® Facility on your mobile device allows you to see when there is a problem and anticipate maintenance cycles.
  • Built-in Wi-Fi® lets you easily connect to myQ Facility software, allowing you to get valuable data and insights to improve operations.
  • Security+ 2.0® virtually eliminates radio wave interference and offers extended range.

MAXUM Commercial Door Operators Have Arrived

Fast

At an average speed of 12” per second, the operator quickly opens doors to help your business stay efficient and profitable. Plus, the floor LCD display allows you to easily track your maintenance schedule—reducing downtime.

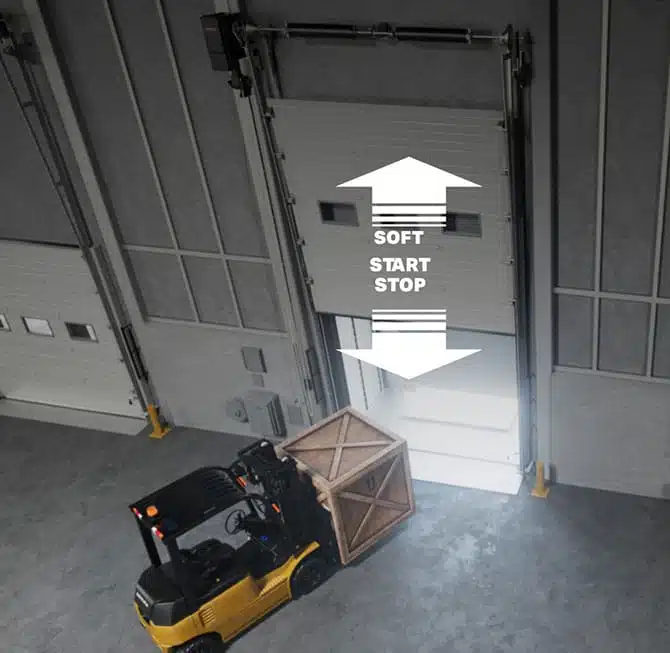

Smart

Soft-start & Soft-stop gives the operator a longer lifespan while Battery Backup ensures that it will keep running—even in a power outage. With embedded Wi-Fi connectivity out the of box, you can use myQ Facility software to access data and analytics to improve your business.

Simple

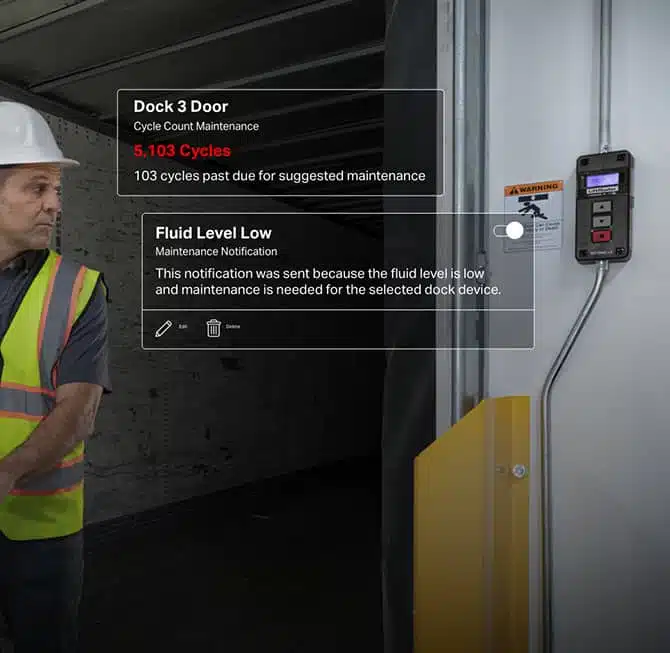

Floor-level wall control makes the operator easier to control and check for preventative maintenance. The modular design enables both right and left-side mounting with a single unit—making the operator flexible to the needs of your application.

Diagnostics

With myQ Diagnostics you can know your maintenance schedule and be alerted when there is a problem to reduce time on tools and increase safety.

myQ Connectivity

Connect to myQ Facility allowing you to see and control what is happening at your facility’s commercial doors from anywhere.

Specifications

myQ Compatibility
Works with myQ, myQ Facility, or myQ Enterprise
Battery Backup
Capable w/ accessory kit DC45AH or DC7AH
Speed/Per Second
Faster speed,12” on average for sectional and 8–9 inches for rolling steel doors
Soft Start/Stop
Yes
Power
120V/240V (1PH/3PH); 480V (3PH); 208V & 600V (3PH) available with transformer accessory
Monitored Safety Inputs
3 Inputs
Radio Receiver
Security + 2.0
Dual handing for installs
Right or left no longer required for order
Wi-Fi

Yes

Duty Cycle Per Hour p/h & Per Day p/d
Standard – 20 cycles p/h /90 p/d | Extended – 30 cycles p/h /150 p/d
Motor Type
24VDC Motor Drive
Warranty
2 Years

What's included

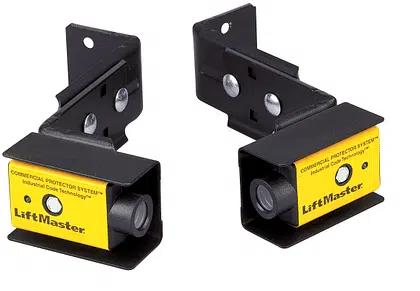

CPS-U

Commercial Photo Eyes

Compatible Accessories

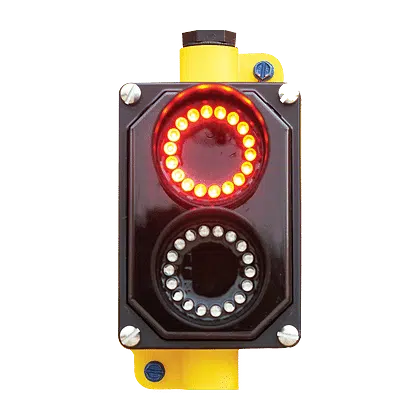

RGL-CTL

Hi-Intensity Red/Green Traffic Light

LC36M

Monitored Light Curtain

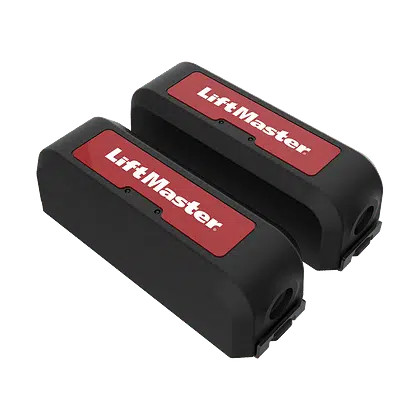

LMWEKITU

Monitored Wireless Edge Kit

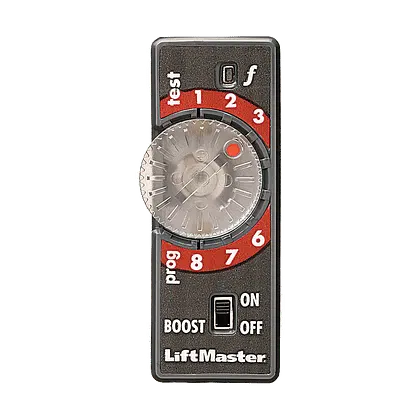

LOOPDETLM

Plug In Loop Detector

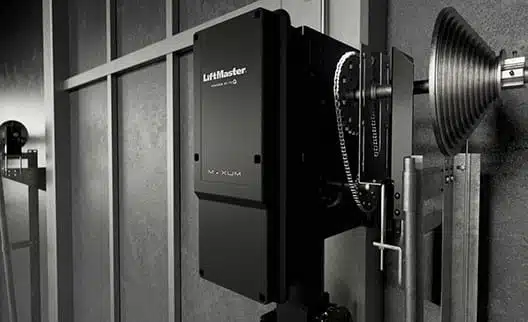

Next Generation JHDC Hoist Operator

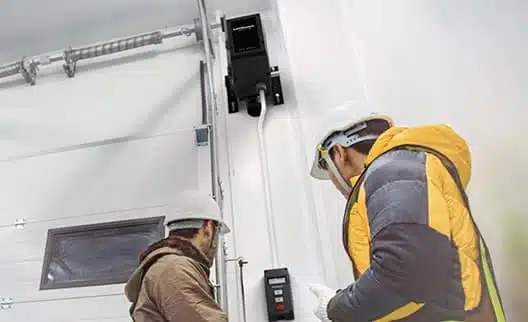

Next Generation JDC Jackshaft Operator
