MAX RHINO 4000 FS
HIGH TRAFFIC HEAVY DUTY INDUSTRIAL 24 V BRUSHLESS DC SLIDE GATE OPERATOR. MAXIMUM GATE WEIGHT 4000 LBS.
Fail safe, back drivable manual operation upon loss of AC power or battery depletion.

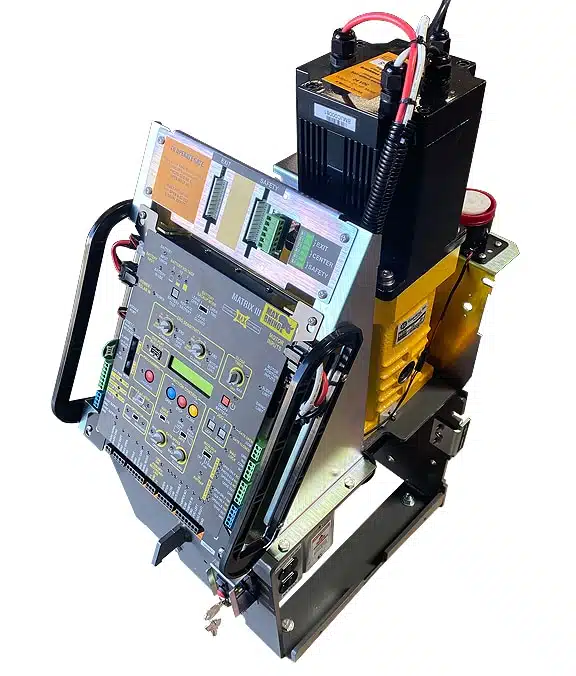

Max Rhino 4000 FS brushless DC sliding gate operator is a solar ready, size 50 chain powerhouse that upon complete power failure can be back driven, fail safe. Using one of our 16 dipswitches, the 4000 FS will run at 19 inches per second. Our patented chain drop can trigger an alarm wirelessly, silently. Lockable steel covers can limit unwanted program changes by the wrong personnel. Capable of continuous duty cycles to meet the high demands of industry. Full battery back up and emergency jog function allows entry in case of UL failure. These and many more features make the Max Rhino 4000 FS the perfect slide gate operator for your most demanding commercial projects. Class lll and lV only.
FEATURES SPECIFICATIONS

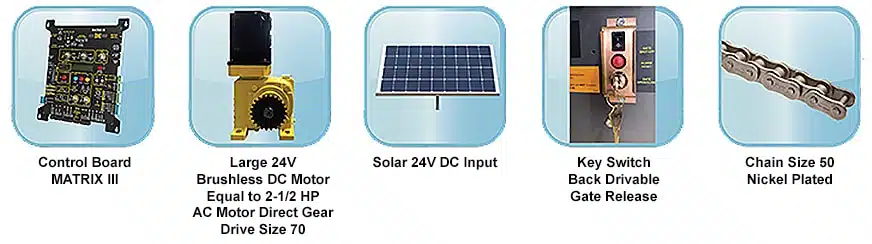

- Built-in battery backup
- 2 AGM (7Amp/Hr) 12V, Yuasa batteries, 40 cycles
- Operator does not rely on the batteries when AC power is present
- On board diagnostic logs 8000 past events, large LCD display
- Shows current and past errors and info
- Dynamic braking system, in closed position, will fight back if unauthorized push back is attempted.
- Audible alarm and relay out trigger when unauthorized entry (push back) is attempted
- Brushless DC Motor equivalent to 2 1/2 HP AC motor
- Gate capacity 4000 lbs
- 3-year warranty on gate operator
- Battery 1-year warranty
- Motor overcurrent safety shutoff for additional protection
- Direct drive gearbox in oil bath allows less moving parts (making the system more reliable) as well as quieter (virtually silent)
- Lightning Protection Advanced lightning strike protection up to 20,000 Volts/10,000 amp
- Continuous duty cycles at extreme temperature range -4oF to 165oF (-20oC to +74oC) operational temperature range including battery performance without needing a heater
- Safety monitor device types: Normally closed or 10K types (most safety inputs in the industry)
- UL 325/991 compliant Class III, and IV. CSA approved
- Rhino Slide Gate Operator dimensions (14.5” W x 19 5/8” D x 29” H) weight 225 lbs
- The chain tray can be used on this gate operator

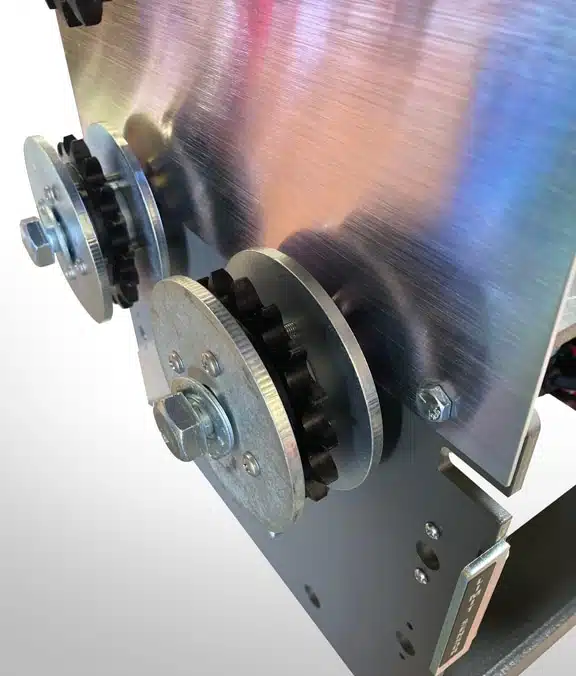

- Chain #50 nickel plated • 30 ft included
- Independent open and closing speed control, adjustable from 19” per second to 10” per second
- Manual disconnect. Local switch, keypad, or any dry contact relay will release dynamic braking, allowing gate to be pushed back in case of emergency
- Programmable virtual limit standard
- Optional magnetic limit sensors available
- Gate status outputs for gate monitoring/Gate Open or Close
- Power options Input 115V/230V AC single phase
- Solar panel compatible (24V DC)
