Managed and Self-Managed, Embedded Browser-Managed Access Control & Telephone Entry Systems with optional Remote Management Console.
The proven e3-Series delivers faster set-up, enhanced features, and scalability with tens of thousands systems installed. These feature-rich, self-contained access systems are designed for small & mid-sized applications where users need to secure their facilities, manage access of personnel, create and analyze reports, and monitor the system remotely.
The e3-Series’ comprehensive wizard is fast and intuitive, saving significant set-up time.
The latest addition to the e3 family are the Entry 4.3″ models which provide access control and telephone entry all-in-one, designed for single and multi-tenant applications. All e3 systems share one common database and programming interface.
Specifications
Out-of-the-box ready:
e3 systems do not require PC or software to install. The embedded Linux OS and common hardware platform provide the ideal solution at the right price and optimum performance without the indirect soft costs of other systems.. Embedded mySQL enables quick and easy set-up via integrated tools for data import. Many of our expansion modules and accessories offer the right specifications to fit any system design. Design provides long term reliability and reduced customer support issues
Scalable for any small and mid-sized application:
Whether you are commercial, industrial, medical, retail, hospitality or other businesses where users need to secure their facilities, e3 systems are perfect for you. The addition of multiple licenses can expand typical access control systems far beyond their normal parameters and allow coverage of a wide variety of applications. Common hardware and one codebased platform allow easy feature deployment via licensing. e3 system is scalable 128 doors, 256 readers, 1K – 20K users.
Additional RMR via services:
Embedded (optional) Remote Management Console – RMC is a Re-occurring Monthly Revenue portal to provide remotely managed access control and services. Extend your ability to manage clients fast and efficiently. View and access one or many systems through one portal with one click. RMC enables management from anywhere with any smart device. It is accessible through standard browser utilizing industry SSL and hand shake. RMC eliminates set-up of remote software and enables faster support.
LOWER TOTAL COST OF OWNERSHIP FOR CUSTOMERS
Better Profitability for the Dealers
Market leading capabilities & value targeting entry-level to mid-market access control applications. Our technology focus drives profitability in the “sweet” spot of installations. Thanks to e3 series’ lower cost for installation, lower cost for support and RMR platform, e3 sells more jobs
• Faster to setup, simple to maintain
• Embedded Linux Operating System (OS)
– MVP (Minimized Virus Potential)
– No Microsoft update dependencies
• Independent network, server, and dedicated workstation
hardware are not required
• Includes SQL database engine; no add-on
database software licenses required
• Browser managed eliminates the need to load client licenses
• Common hardware reduces installer training and inventory cost
• Common software user interface means reduced training costs
• Open platform allows for cost-effective integration with other
technologies,
• Flat cost for replacement / service hardware.
LINEAR E3 SERIES OVERVIEW OF SYSTEM FEATURES

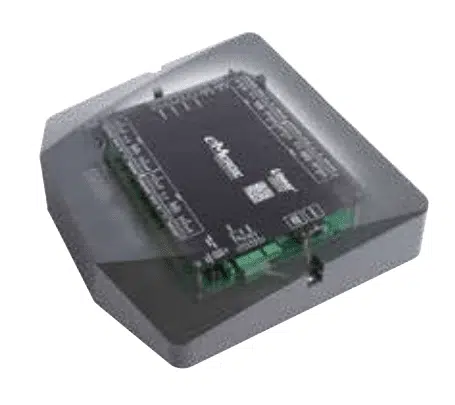

e3 Essential
The entry-level value leading 1–4 door system with immediate expansion capability to 4-doors / 8-readers (no additional hardware is needed to expand doors).
- System easily expands capabilities via License-ToGo—grow your capabilities as your needs change.
- Essential: Housed in a compact plastic enclosure
- Essential Plus: Housed in a steel enclosure; includes supervised AC battery back-up
- Easily scalable via software upgrade keys to highercapacity e3-Series eMerge Elite models
- UL 294 Certification (Plus and Standard model).

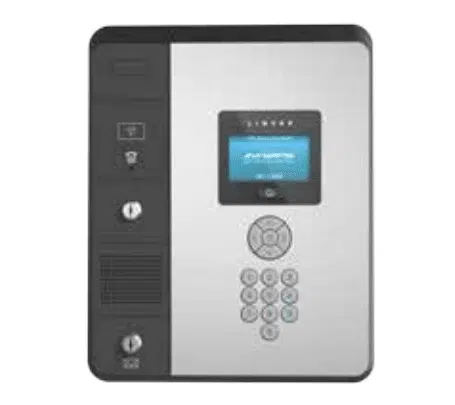

Entry Series
- Entry ships starting with 2 doors; expandable up to
36-doors - Includes 4 in/out readers
- Includes MegaCode Receiver, TTY Port, Power
Transformer and mounting hardware - Works with all types of 2 wire telephony
- Remote management capable
- Integrated Networking / TCIP Port, RS485, RS422 Port and TTY Port
- Durable ArmorTech polycarbonate and metal housing options
LINEAR E3 SERIES OVERVIEW OF SYSTEM FEATURES
Capabilities that Outshine Other Systems
Common Features
- Shared hardware and software architecture across all e3-Series
- Reliable, IT-friendly embedded Linux operating system
- SQL database with optional API available (Elite only)
- Intuitive quick-start wizard
- Browser-based management enables system status and updates from any place, on nearly any browser
- Easily upgradable to incorporate future e3 technology integrations
- UL 294 Certification
Hardware Features
- High-speed, 1GHz processor handles multiple simultaneous users and more than 30 transactions per second
- Long-term event storage via micro-USB card and FTP back-up •
- Optional Power over Ethernet (PoE)

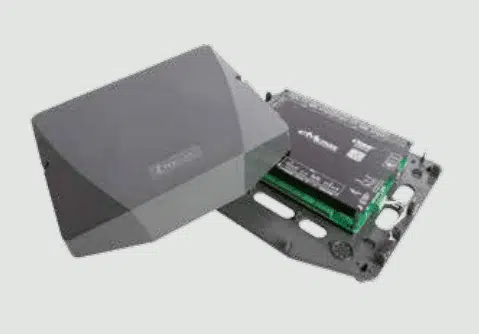

- Controller and Expansion Node enclosure options:
- Small footprint ruggedized plastic enclosure
- All metal enclosures include supervised AC battery backup system
- Step-up Power Supply (integrated and stand-alone)
- 10Amp – with Step-up Regulators provides both 12 and 24 VDC at the same time –
- Designed to lower the cost of installation by eliminating the conduit, interconnected wiring to power locks and auxiliary
Software Features
- Mobile-friendly user interface
- Set-up wizard
- Dashboard displays full system status-at-a-glance including:
- Event and activity log
- Customizable door diagrams/floor plans
- Remote door lock and unlock with status view camera’s, photo id’s and defined events with acknologments
- Time-saving and convenient features:
- Integrated card decoder tool
- Dynamic event filtering
- Built-in audit-trail
- Automatic daily data backup
- Built-in documentation library
- CSV flat file database import and export
- E-mail, text message notifications
- Simple, easy-to-use predefined reports
- Micro SD or FTP-based storage

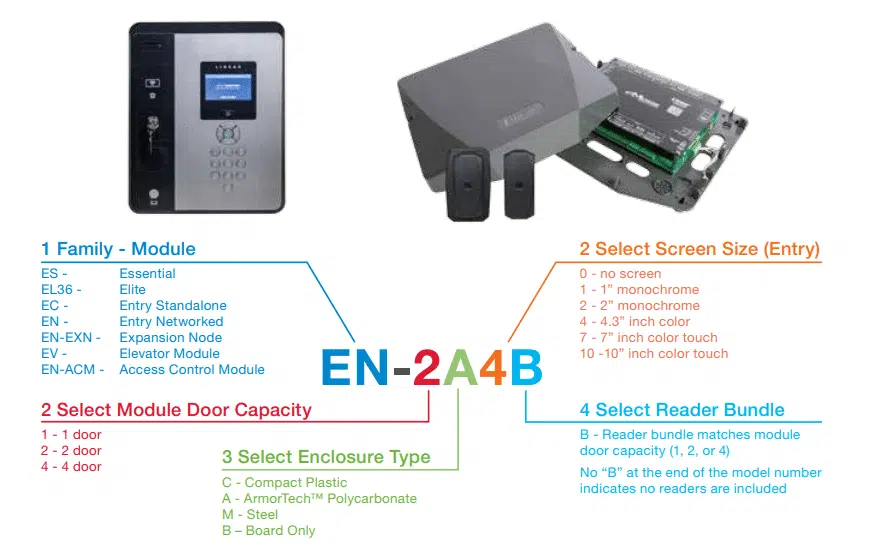

LINEAR E3 SERIES ORDERING GUIDE
