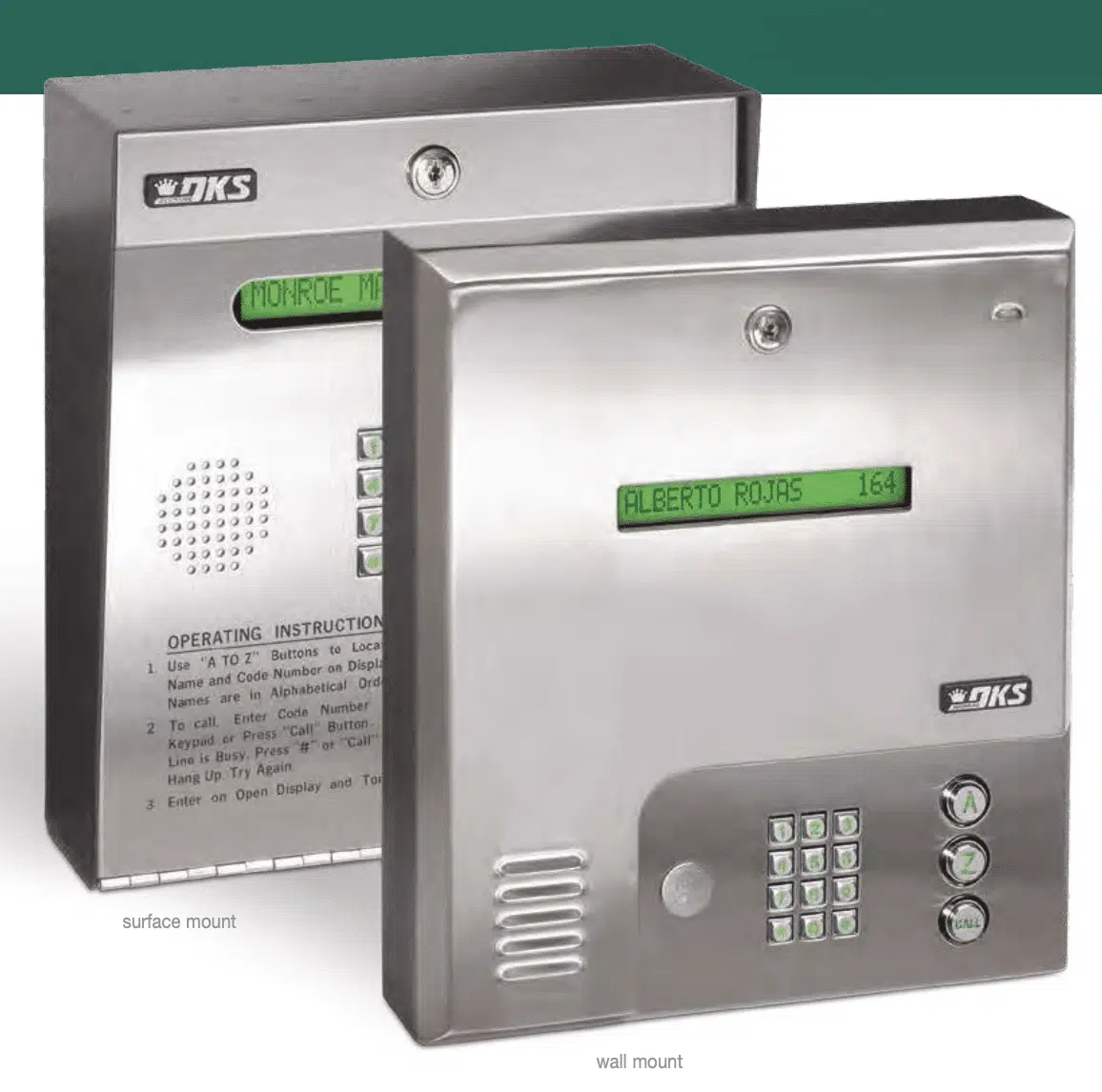

1835 PC PROGRAMMABLE TELEPHONE ENTRY SYSTEM

  • Provides both resident and visitor Access Control into and within apartment buildings, gated communities, condominiums, office buildings, factories and industrial sites
  • PC Programmable. Programming and Transaction Analysis Software included
  • Voice and Data (programming) Connection over either Cellular, Internet, or copper POTS lines
  • Built-In Electronic Directory
  • Large easy-to-use A-Z-CALL Buttons
  • Resident Access Control is provided by means of Cards, Digital PIN Codes, or Wireless Transmitters
  • 2-Year Limited Factory Warranty
REQUEST A QUOTE

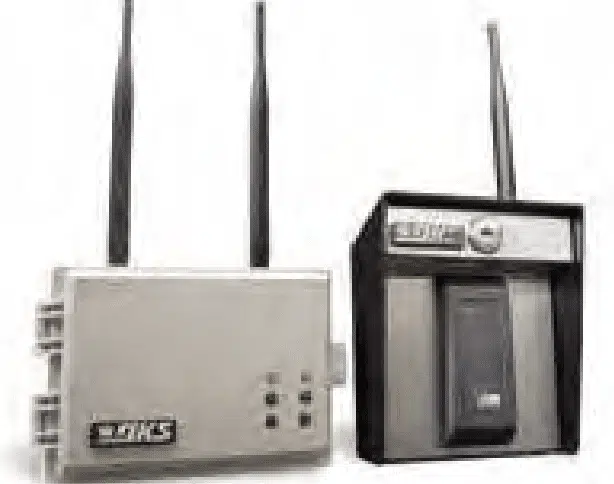

wireless expansion

Up to 48 entry points

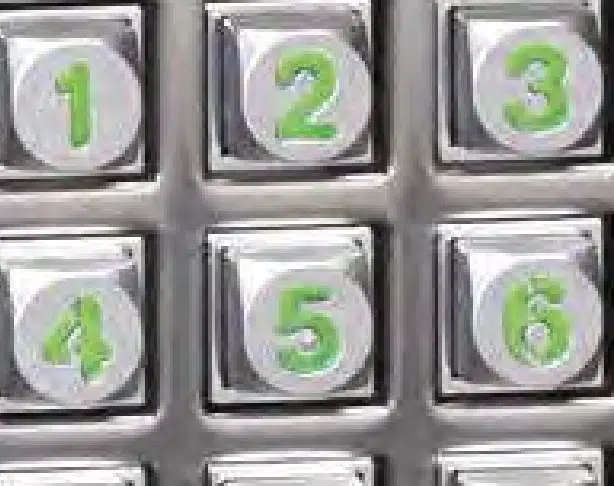

internal LED

Lit keypad and A-Z-CALL buttons

PC Programmable

Easy to use software included

Voice and Remote Programming

Use DKS service options for connection and programming

Technical Features

MECHANICAL

  • Stainless Steel Faceplate
  • Galvanized Steel Sub-Plate
  • Metal Keypad, with internally lit LED Keypad and A-Z-CALL buttons
  • Offset Speaker Holes for protection
  • Hands-Free Voice Operation (Optional handset available on surface or flush mount only)
  • Built-In Postal Lock Provision, EEPROM memory

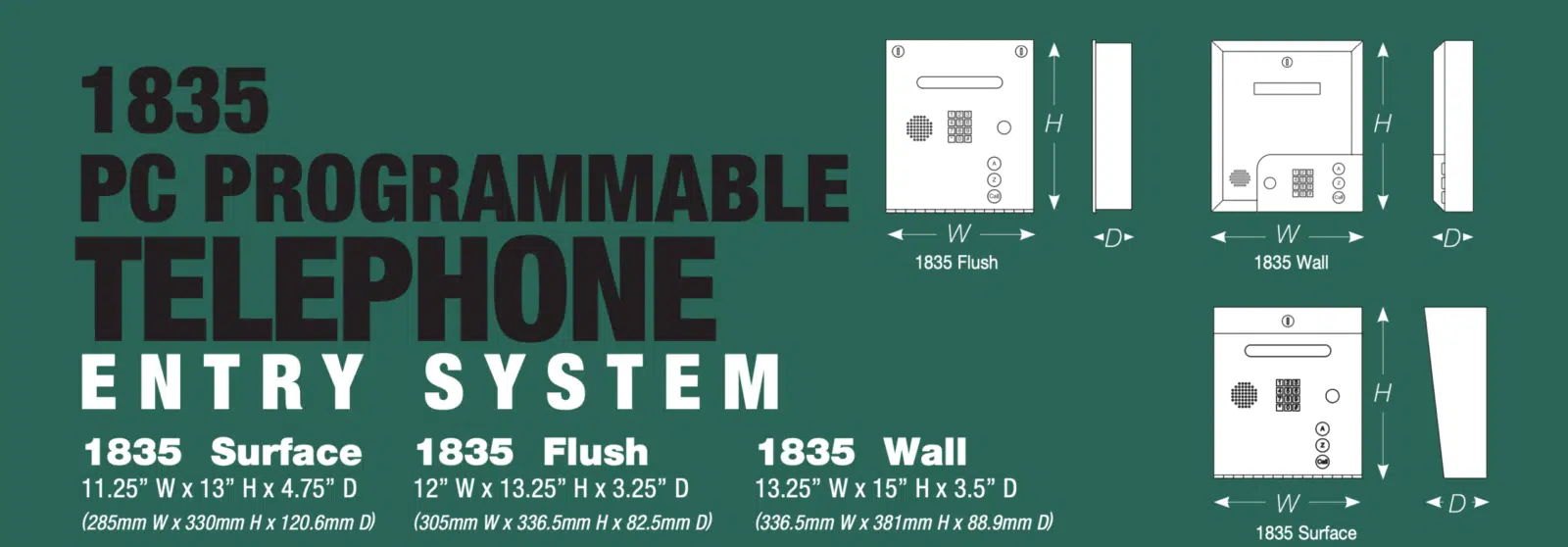

  • Surface, Flush or Wall mounting styles Flush mount requires Flush Mounting Kit Enclosures are rated NEMA 4x

Connection Methods

  • Cellular (powered by AT&T 4G LTE)
  • VoIP (DK VoIP or select your own VoIP provider)
  • POTS (Plain Old Telephone Service)

Connection methods noted will incur additional cost for required hardware and/or service subscriptions

Specifications

  • Single-Line 20 character Super-Twist LCD Display (1/2 inch characters)
  • 16 VAC (2 Power Transformers included)
  • Full Duplex Voice Communication
  • Stores up to 3000 Phone Numbers, 255 Area Codes
  • Max 8000 Wiegand Device (card codes), 10 Facility Codes
  • Transaction Buffer stores last 8000 Events
  • Control 3 Entry Points, expandable to 48 with Tracker Expansion Boards
  • Programmable Directory Codes (1 to 4 digits)
  • 10 & 11-Digit Dialing Capability
  • 31 Security (permission) Levels, 29 programmable with 4 Time Zones each
  • 32 Holiday Schedules
  • 4-Digit Entry Codes
  • Built-In Clock / Calendar
  • 8 Hold Open Time Zones
  • Entry Code Time Zones
  • True Anti-Pass Back
  • Live Transactions feature (requires TCP/IP internet connection or RS-232 connection)

Miscellaneous

  • Environmental: 10ºF to 145ºF (-12°C to 62°C)
  • Heater Kit (P/N 2600-584) recommended when temperatures routinely fall below 10°F (-12°C)
  • ADA Compliant Handset Kit (P/N 1807-012) available on surface or flush mount only
  • Camera Ready: Optional B&W or Color CCTV Camera* *may require additional CCTV equipment
  • Shipping weight approximately 20-25 lb (9-11 kg)
