Unique system allows homeowners to use their telephone as an intercom to speak with visitors at their front door or gate

  • Three models to choose from: 1812 Classic, 1812 Plus, and 1812 Access Plus
  • Unique communication and access control system allows homeowners to use their telephone as an intercom to speak to a guest at a front door or gate
  • System connects directly to the homeowner’s existing telephone line. No additional monthly expenses for a separate telephone line
  • Calls from access system are identified with a double ring. Homeowners know instantly if a call is coming from their door or gate
  • Built-In call waiting assures that incoming or guest calls are not missed
  • 2-Year limited factory warranty
REQUEST A QUOTE

Grant Guest Access

by pressing 9 on the telephone

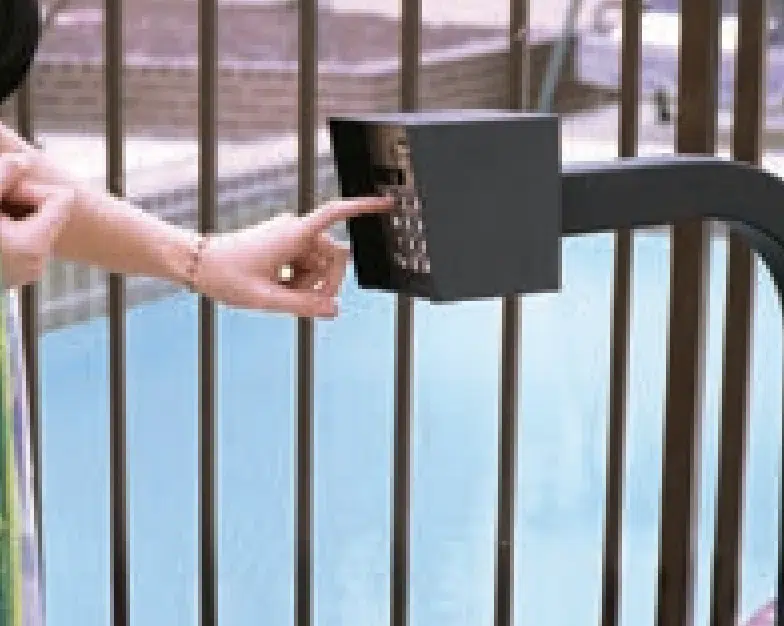

Additional Access Point Control

with keypads, card readers or RF receiver

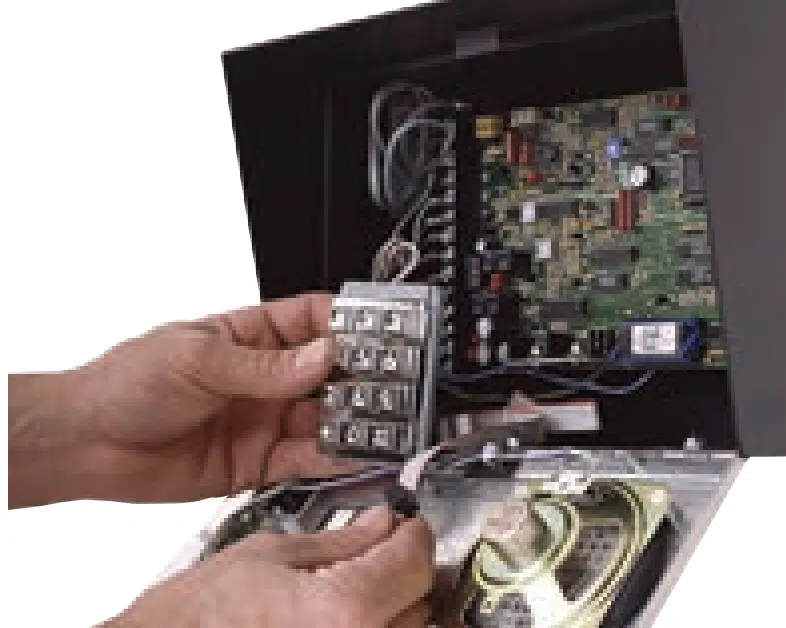

Modular Design

makes installation and service easy

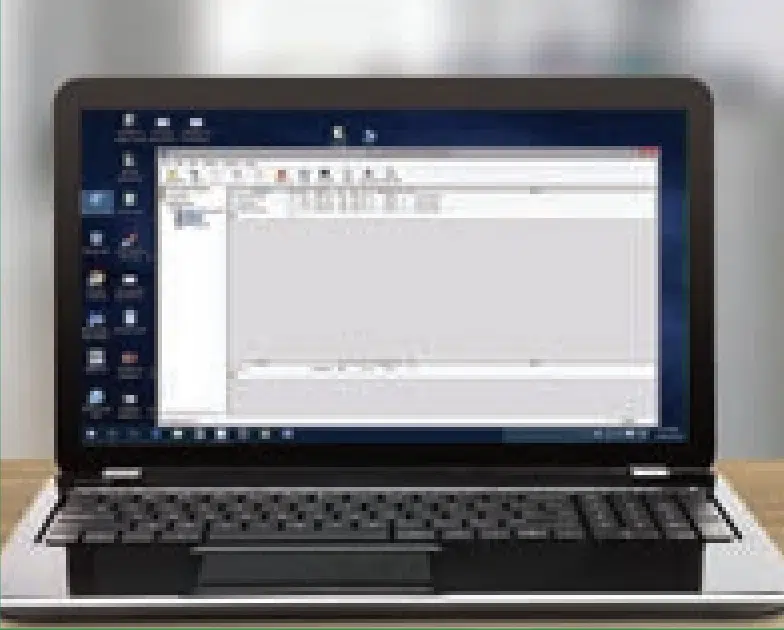

PC Programmable

program the 1812 Access Plus from your PC

TECHNICAL FEATURES

MECHANICAL

  • Stainless Steel Faceplate
  • Galvanized Steel Sub-Plate Metal Keypad
  • Offset Speaker Holes for protection Indoor or outdoor applications
  • Hands-Free Enclosures are NEMA 4x rated

ELECTRICAL

  • Hands-Free Full Duplex Voice Communication Unique Ring, Call Waiting, and Call Forwarding Special Intercom Mode for use with KSU and PBX phone systems Built-in Time Clock / Calendar
  • Entry Code Time Zones Call Forwarding Time Zone
  • 4 Hold Open Time Zones Do Not Disturb Time Zone
  • Flash Entry Codes 2 Relays to control 2 Entry Points
  • 2-Digit Directory Codes Multiple systems may share same phone line Secondary keypad can be added for entry code access at a second door or gate

MISCELLANEOUS

Environmental: 10°F to 145°F (-12°C to 62°C) Camera Ready: Optional CCTV Camera* *may require additional CCTV equipment Shipping weight approximately 15 lb (7 kg)

  1. Entry codes grant access when entered on the system keypad (or secondary keypad). 1812 Classic entry codes are four (4) digits and 1812 Plus entry codes are five (5) digits.
  2. Device codes refer to any five (5) digit RS-485 device used to access an entry point, such as cards, transmitters or PINs (Personal Identification Number). Five (5) digit device codes can also be used on the system keypad as an entry code.
  3. Switch inputs can be used to activate relay 1 or relay 2.
  4. Six (6) additional entry points can be controlled via RS-485 Card Readers, AVID Tag Readers, RF Receivers or Digital Keypads.
  5. Access Plus programming software is available as a free download at www.doorking.com/telephone/software. IP Addressable, programmable via direct connection to PC, LAN or the internet.

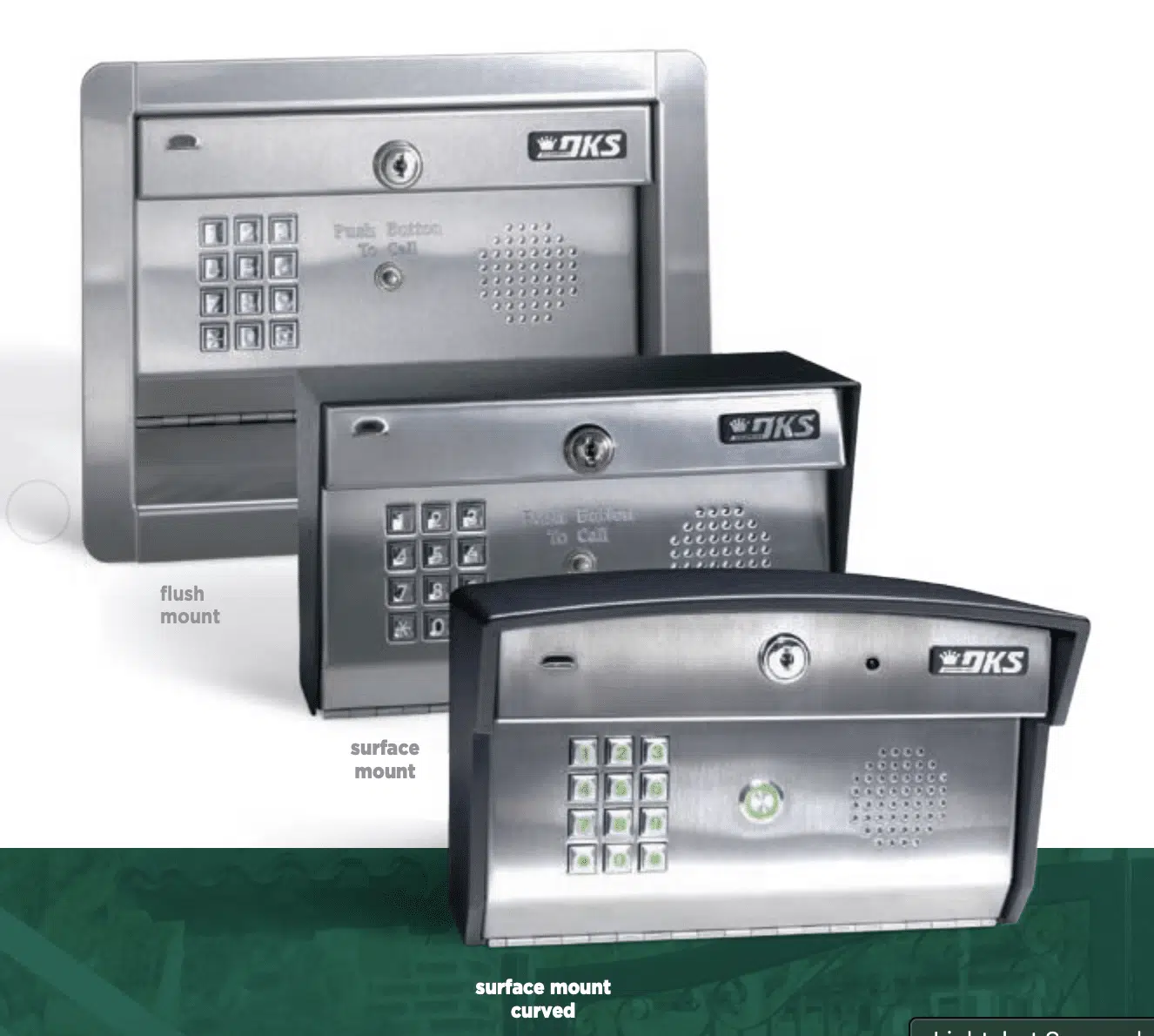

1812 CLASSIC

  • Includes 24 VAC Power Transformer
  • 11-Digit Dialing
  • Analog Voice Circuit
  • 3 Preprogrammed Call Out Phone Numbers
  • 4-Digit Entry Codes (50)

1812-P & 1812-AP

  • Includes 16 VAC Power Transformer
  • 20-Digit Dialing
  • HD Digital Voice Circuit
  • 50 5-Digit Entry Codes with Time Zone Restrictions on some codes
  • 27 Dial-Out Phone Numbers
  • Answer Machine Bypass Feature

1812-AP

  • IP Addressable – program from your PC via direct connection, LAN or an internet connection. DKS Connection Services offer easy ways for fast voice and data connection over either Cellular, Internet, or POTS.
  • Intuitive, easy to use, Windows-based programming software included
  • Add up to 6 Card Readers, Keypads or RF Receivers (RS-485)
  • 100 Card/Transmitter/Keypad codes (50 w/phone numbers; 50 Access Codes only)
  • Up to 30 holidays can be added to Access and Hold Open Time Zones
  • Control access points from your PC. Schedule lock and unlock times, lock or unlock an access point with the click of a mouse
  • 10 Temporary Access Codes with start and end dates
  • 500 Event Transaction Buffer
  • Email notification of events of your choice. Internet connection required
