GCL-MH
The new Z Series GCL-MH is designed for high or full-lift sectional and rolling doors that have a limited-duty cycle requirement. Advanced features and robust mechanical design combine to provide a medium-duty operator that is the new standard in the industry.
Advantages
- Rated for 15 cycles per hour operation, maximizing the performance of a medium-duty operator.
- Modular design with optional expansion boards for an advanced timer to close, and auxiliary output functionality.
- Included internal Intellicode® receiver learns up to 50 transmitters with randomly assigned identity numbers. Learn and delete individual transmitters directly from LCD display.
- Ball bearing motor with built-in thermal protection and ball bearings isolates motor for quiet operation, provides overload protection and extended motor life due to use of bearings over bushings.
- Open/close/stop and setup keys included on control board. Keeps all controls near the LCD display convenient for set up.
- Electric box isolation from the frame reduces vibration.
Standard Features
- UL 325 2010 approved.
- EZ Limit® electro-mechanical limits.
- Max run timer automatically adjusts to up and down run time.
- TensiBelt® self-tensioning primary drive reduction.
- Delay on reverse.
- 16-character LCD display.
- 3-button control station.
- 2-year/20,000 cycle warranty.
- Programmable mid-stop.
- Right or left hand emergency hoist models available for manual operation.
- Built-in cycle count and trouble-shooting assistance via LCD display.
Product Information

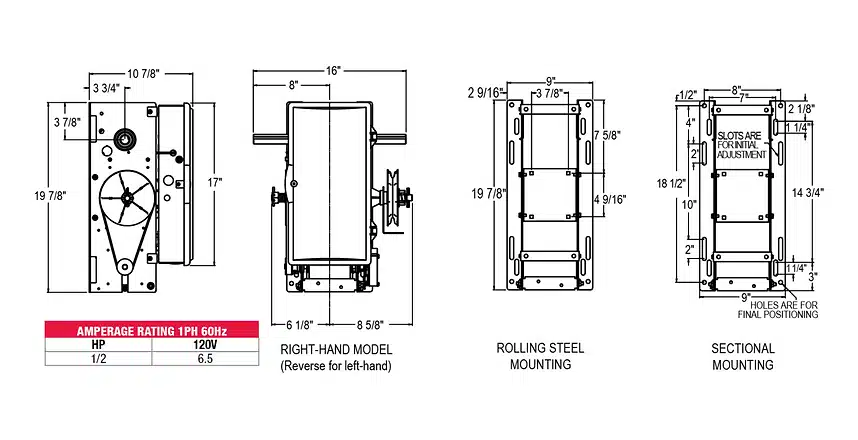

Shop Drawings
