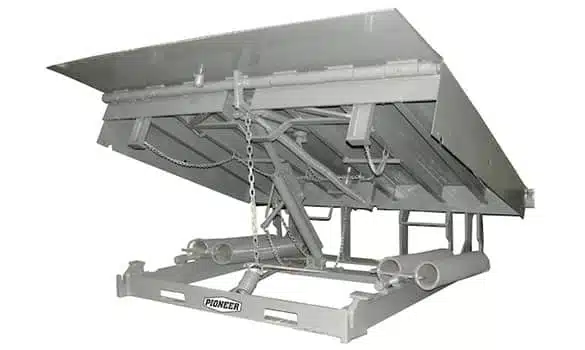

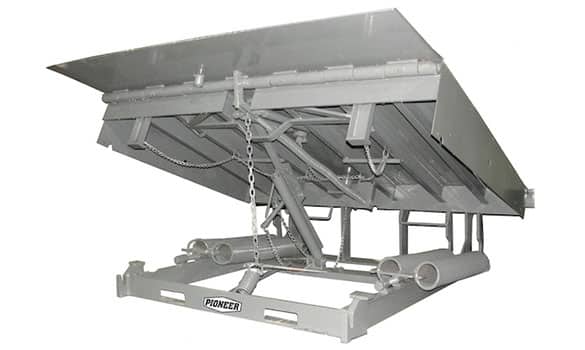

Pioneer P2000 Mechanical Dock Leveler

P2000 Series

Mechanical Leveler

25,000; 30,000; 35,000; 40,000; 45,000; and
50,000 Ib. Dynamic Capacities

6‘, 6°6”, and 7’ Widths
6’, 8’ and 10’ Lengths
(Custom Sizes Available)

Dependable PIONEER Levelers Keep Working for You.

Offering a wide variety of dynamic capacities, the P2000 Series Leveler provides 18” and 20” lip options, in addition to many other custom features. Dual 60,000 Ib. safety legs provide additional strength and support. Deck and lip are constructed of 55,000 Ib. minimum yield steel tread plate. Lip keepers serve as night locks for security and provide safe cross-traffic support when unit is stored. Dock bumpers and grease fittings on lip hinge are standard with each unit.

Warranty

PIONEER offer a 3-year warranty on structural members. A 1-year warranty is provided on mechanical and miscellaneous parts (including materials, and labor).

Guarantee

PIONEER will provide our standard warranty or match any documented competitive warranty in the industry for comparable models. There is no fine print.

Features & Specifications

Durability

Deck and lip are constructed of 55,000 Ib. Minimum Yield Steel Tread Plate.
All PIONEERPSeries Levelers are exclusively equipped with Solid Steel Structural “C” Channel for maximum deck support. Each beam is fully welded to a Full-width
Header Plate at the front ofthe Leveler.
Direct Extension Spring Design has no moving parts – nothing to service!
Extra Heavy Rear Angle with Strategically Placed Gussets provides maximum structural support and frame strength.
Laminated Bumpers included to protect dock face and Leveler from truck damage.
Continuous Hinge Design with Grease Fittings included as standard.

Easy Installation

Front and rear Forklift Slots provide easy access for maneuvering and installation. Side Ports allow unit to be suspended and lowered into pit from dock floor.
Custom engineered Rear Angle is two inches wider than the Leveler, providing extra area to weld at both ends.

Simple Operation

Conveniently located Pull-chain provides easy activation of deck and lip.
Direct extension Spring Counterbalance provides easy walk-down.
Operating Range of 12” above and 12” below dock allows Leveler to be recycled with the truck in position.
Automatic, positive lip extension.

Safety

Maintenance Struts are a standard feature on all P Series Levelers.
Positive Hold-down Device allows up and down float when in service.
PIONEER’s Counterbalance System operates on simple, Direct Extension
Spring Design with no moving parts. Adjustment Nut is located at the front of
the Leveler for safe, easy access.
Lip Keepers serve as night locks for security, and provide safe Cross-traffic
Support when unit is stored. Deck tilts to a maximum of 4” from side to side to
compensate for unlevel trucks.
Safety Legs automatically provide below dock support in event of premature
truck departure.
Toe Guards protect workers from injury during loading and unloading.
