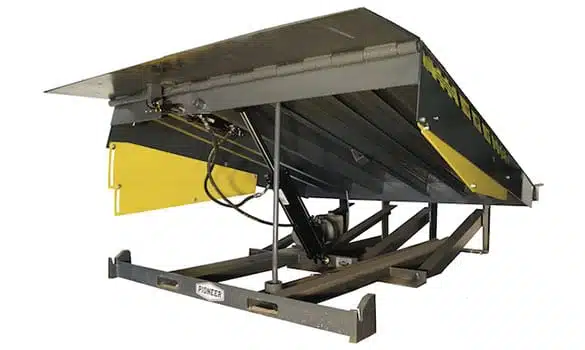

HP Series
Hydraulic Leveler
Hydraulic: 1 hp., 1.3 G.P.M. Hydraulic Deck and Lip
25,000; 30,000; 35,000: 40,000 and 45,000 lb.. Dynamic Capacities 6′, 6’6″, and 7′ Widths
6′, 8′ and 10′ Lengths (Custom Sizes Available)
Rugged PIONEER Levelers Keep Working for You.
Fully hydraulic HP Series Levelers offer solid-state proximity sensors to control deck and lip functions, including automatic return to safe cross traffic position when truck departs. Lip hinge features full-width, cold roll CF 1045 steel pin and seamless tubing for exceptionally heavy loads. Lip keepers serve as night locks for security and provide safe cross-traffic support when unit is stored.
Warranty
PIONEER provides a 5-year warranty on structural members. A 1-year warranty is provided on motor pump and miscellaneous parts (including materials, labor, and freight).
Guarantee
PIONEER will provide our standard warranty or match any documented competitive warranty in the industry for comparable models. There is no fine print.
Features & Specifications
- Deck and lip are constructed of 55,000 lb. Minimum Yield Steel Tread Plate.
- Deck support beams are Solid Steel Structural “C” Channel, fully welded to Full-width Header Plate.
- Regenerative Main and Lip Cylinders provide dual-sided lubrication for all hydraulic seals.
- Extra Heavy Rear Angle with Strategically Placed Gussets provides maximum structural support and frame strength.
- Continuous Hinge Design with Grease Fittings included as standard.
- Heavy Duty Bumpers protect dock face and Leveler from truck damage.
- Power is available in 1 ph. (115), (208), or (230) volts; or 3 ph. (208), (230), or (460) volts. All 60HZ units.
- Custom Rear Angle is two inches wider than the Leveler, providing extra area to weld at both ends.
- Front and rear Forklift Slots provide easy access for maneuvering and installation.
- Side Ports allow unit to be suspended and lowered into pit from dock floor.
- Note: As with all electrical equipment, this unit should not be immersed or sub- merged. Contact Pioneer for alternative solutions.
- Hydraulic system includes an Inline Safety Stop to prevent free-fall in the event the unit suddenly becomes unsupported.
- Power unit is totally enclosed, factory wired, and tested per specifications. All 60HZ units. Remote box meets N.E.M.A. 4 (and/or N.E.M.A. 12) requirements.
- HP Series Solid-state Proximity Sensors automatically return Leveler to safe cross-traffic position when truck departs.
- Lip Keepers serve as night locks for security, and provide safe Cross-traffic Support when unit is stored. Deck tilts to a maximum of 4″ from side to side, compensating for unlevel trucks.
- Full-range Toe Guards protect workers from injury during loading and unloading.
- Base Frame Support Struts, exclusive to PIONEER, transfer pull-out forces of unsupported Leveler onto the floor of the pit – making this the strongest and safest Leveler on the market today!
- All Operations are push-button controlled from a single, prewired Wall Mounted Remote. Leveler can be recycled with the truck in position, or after the truck departs, by depressing the start button.
- Automatic Lip extends and locks as main cylinder raises the platform; descends upon truck departure.
- Solid-state Proximity Sensor elec- tronically recycles the Leveler when truck departs.
- Range of 12″ above and 12″ below dock.
