BL Series

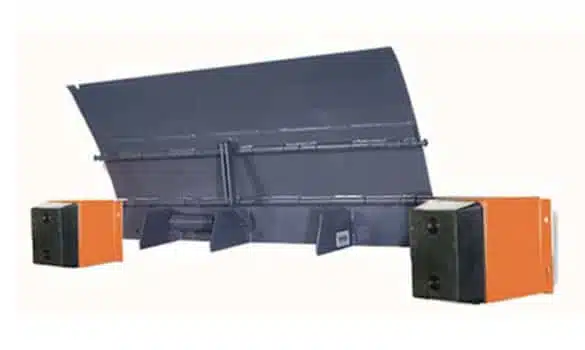

ED Series Also Available Mechanical Edge-of-Dock Leveler

20,000; 25,000: 30,000 and 35,000 lb. Dynamic Capacities

66″, 72″, 78″ and 84″ Deck Widths
96″, 102″, 108″ and 114″ Overall Widths

REQUEST A QUOTE

Affordable, Dependable Levelers for Every Operation.

Offering a range of lengths, widths, and dynamic capacities, the BL Series Leveler combines rugged durability with a competitive price. BL Series Levelers provide an operating range of 5″ above and 5″ below dock, with a minimum lip projection of 12 3/4″ and an overall span of 27 3/4″. Broad centerplate and lip are constructed of 55,000 lb. minimum yield steel tread plate. All Pioneer BL Series Levelers are exclusively equipped with 3 formed steel gussets, providing 30,000 lbs. of structural support in the stored position.

Warranty

PIONEER offer a 2-year warranty on structural members. A 1-year warranty is provided on mechanical and miscellaneous parts (including materials, labor, and freight).

Guarantee

PIONEER will provide our standard warranty or match any documented competitive warranty in the industry for comparable models. There is no fine print.

Features & Specifications

  • Centerplate and lip are constructed of 55,000 lb. Minimum Yield Steel Tread Plate.
  • Formed, plate steel Bump Blocks and molded Rubber Bumpers protect dock face and Leveler from truck damage.
  • Continuous Hinge Design with Grease Fittings included as standard with each unit.
  • Unique Torsion Spring Design allows simple, precise adjustment.
  • Steel Rivets located at either end of the centerplate hinge provide easy, forklift installation (ED Series Only).
  • Optional Self-forming Pan allows unit to be recessed into dock face without concrete pit forming (specify ED66MP or BL66P).
  • Mechanical Torsion Spring Lift Assist allows simple, one-man operation.
  • Leveler raises and extends smoothly onto truck bed with use of convenient Lifting Hook (ED Series) or Bar Handle (BL Series).
  • Unit is easily recycled with truck in position and automatically returns to stored position upon truck departure.
  • Flat Models available for pallet jack operation.
  • Mechanical Torsion Spring Lift Assist means no pulling or straining.
  • Solid Steel Gussets provide centerplate support for end-loading trailers.
